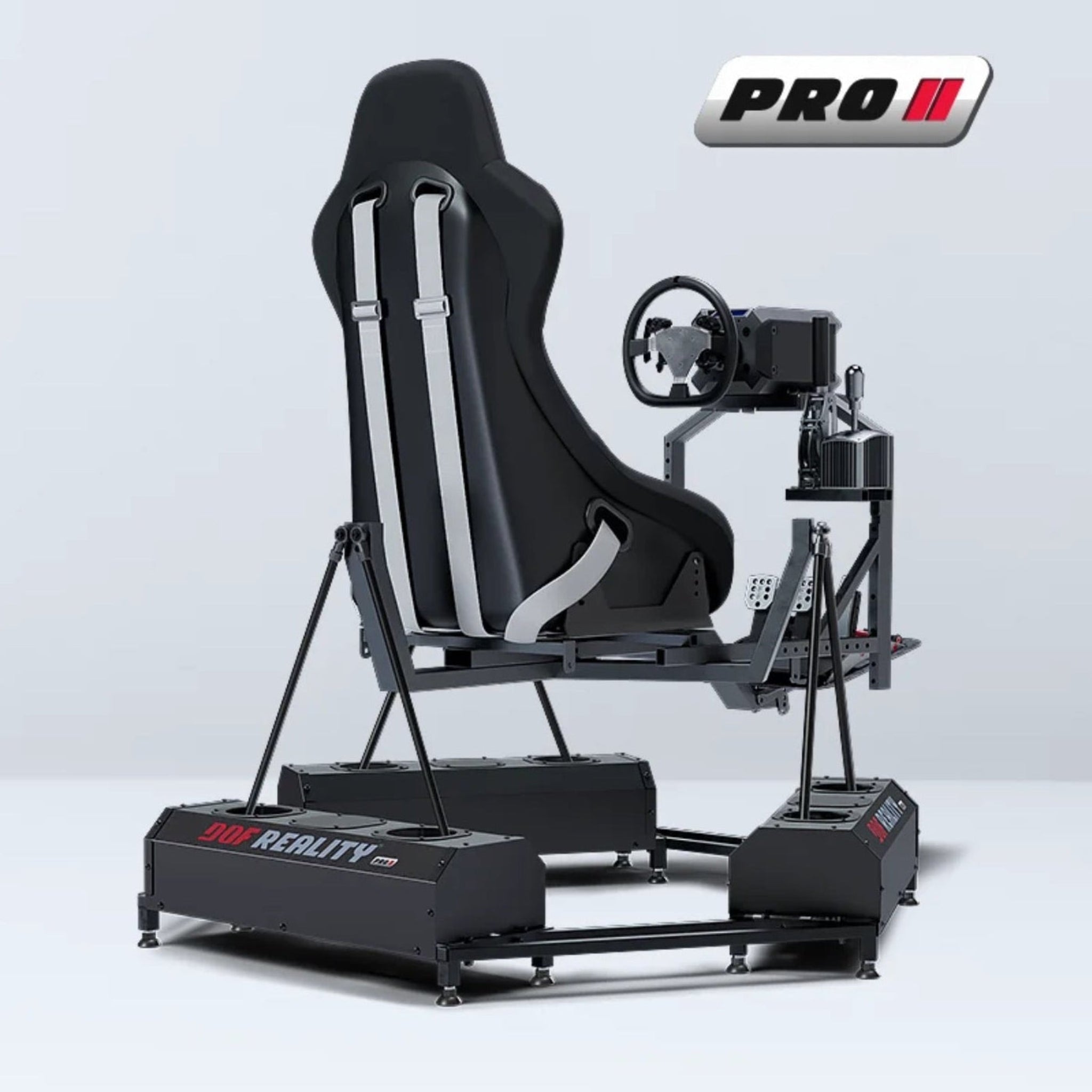

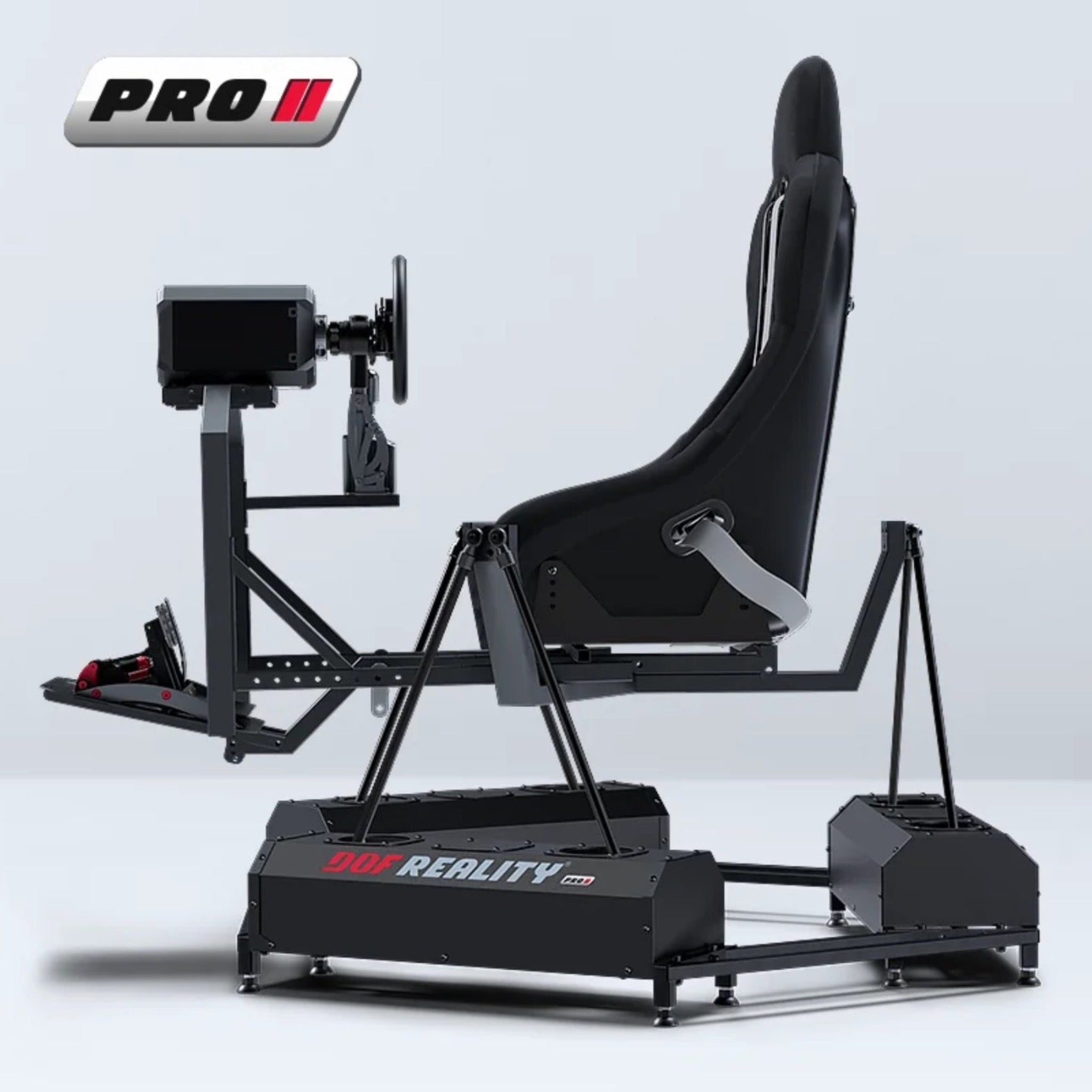

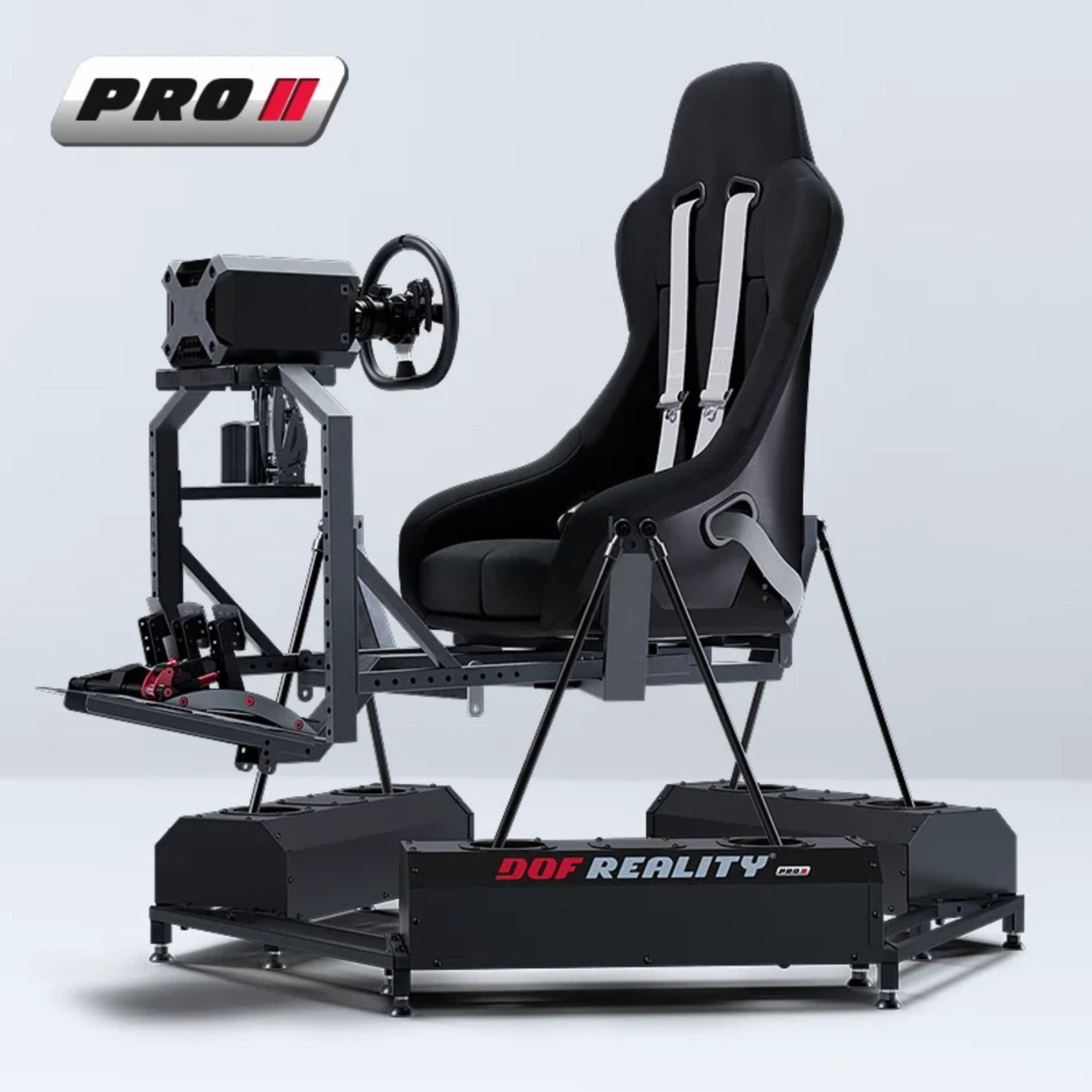

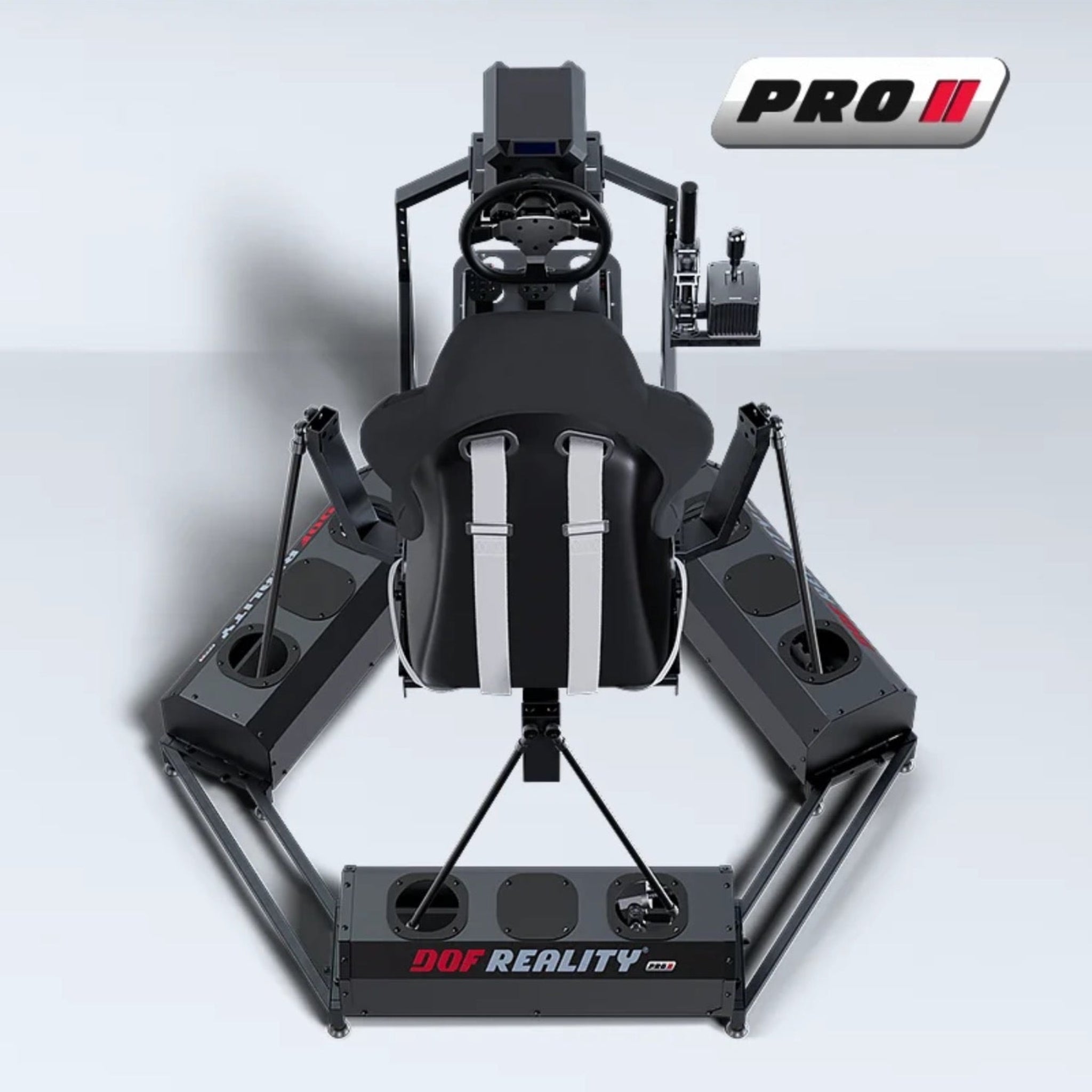

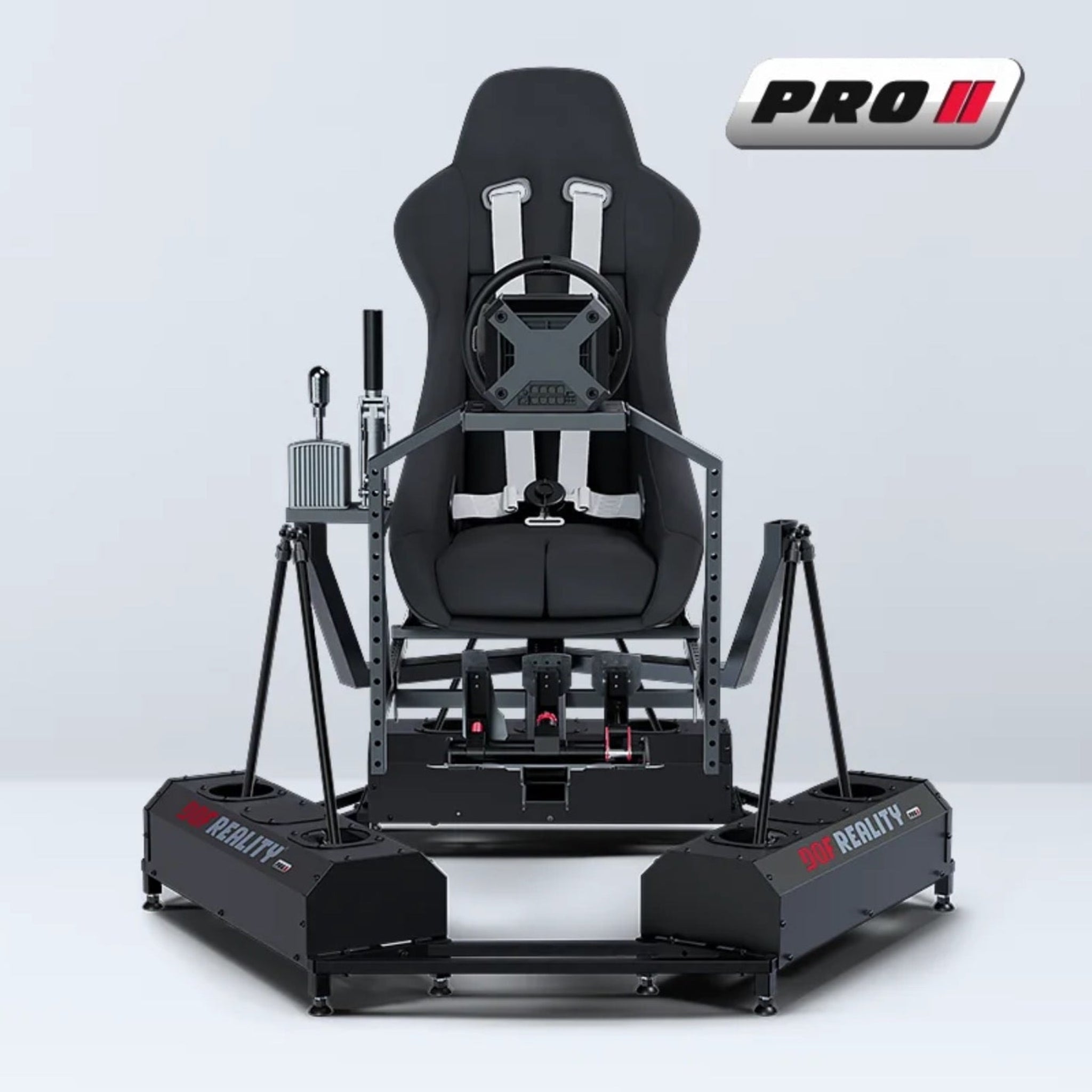

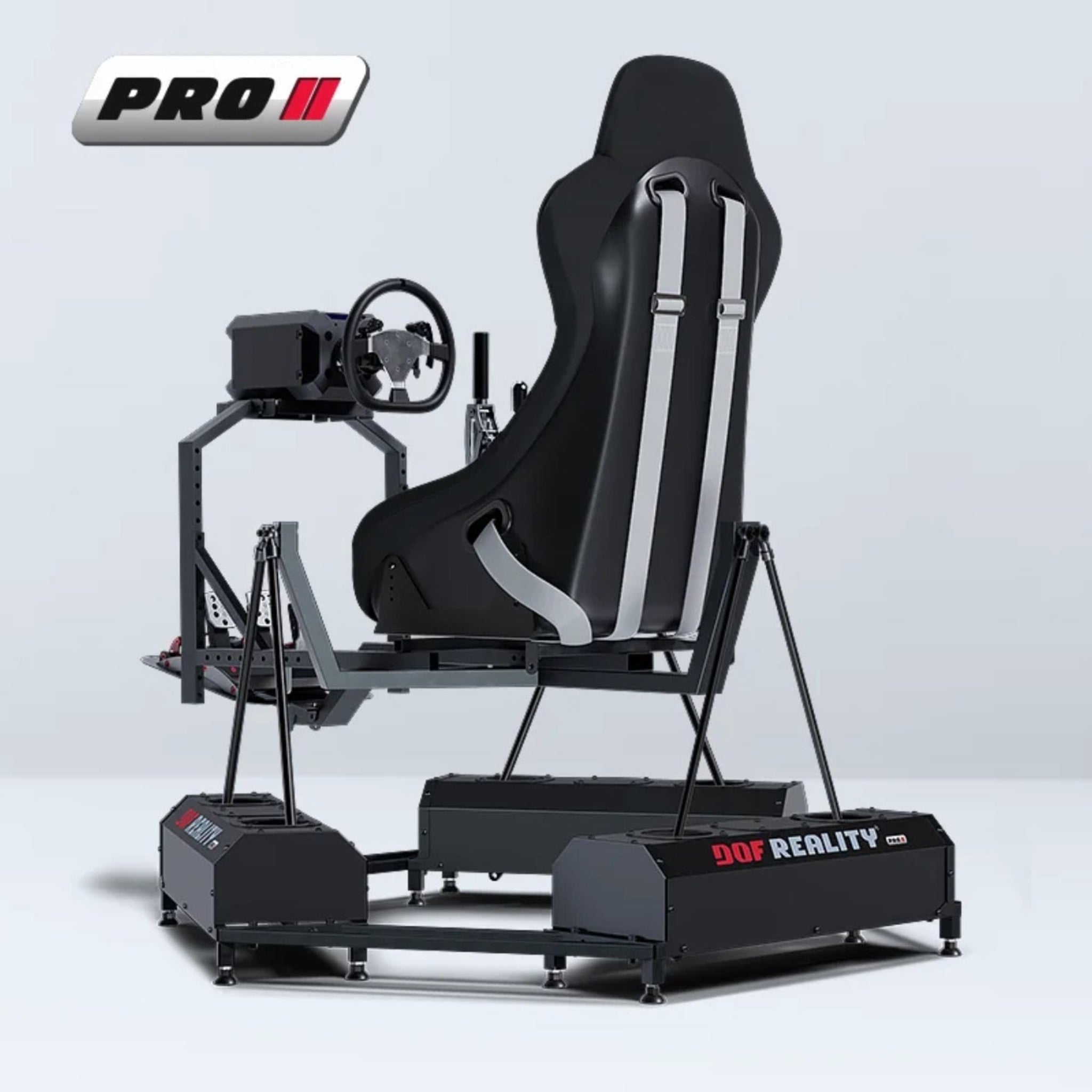

DOF Reality P6 Professional Universal Motion Simulator Platform

All six degrees of freedom. One professional chassis. Built to run all day.

The DOF Reality P6 6-Axis Professional Universal Motion Simulator Platform is the flagship of the P-Series lineup—a full-blown 6DOF motion base designed for high-end home users, sim studios, VR arcades and training environments that demand every axis of motion: heave, roll, pitch, surge, sway and yaw.

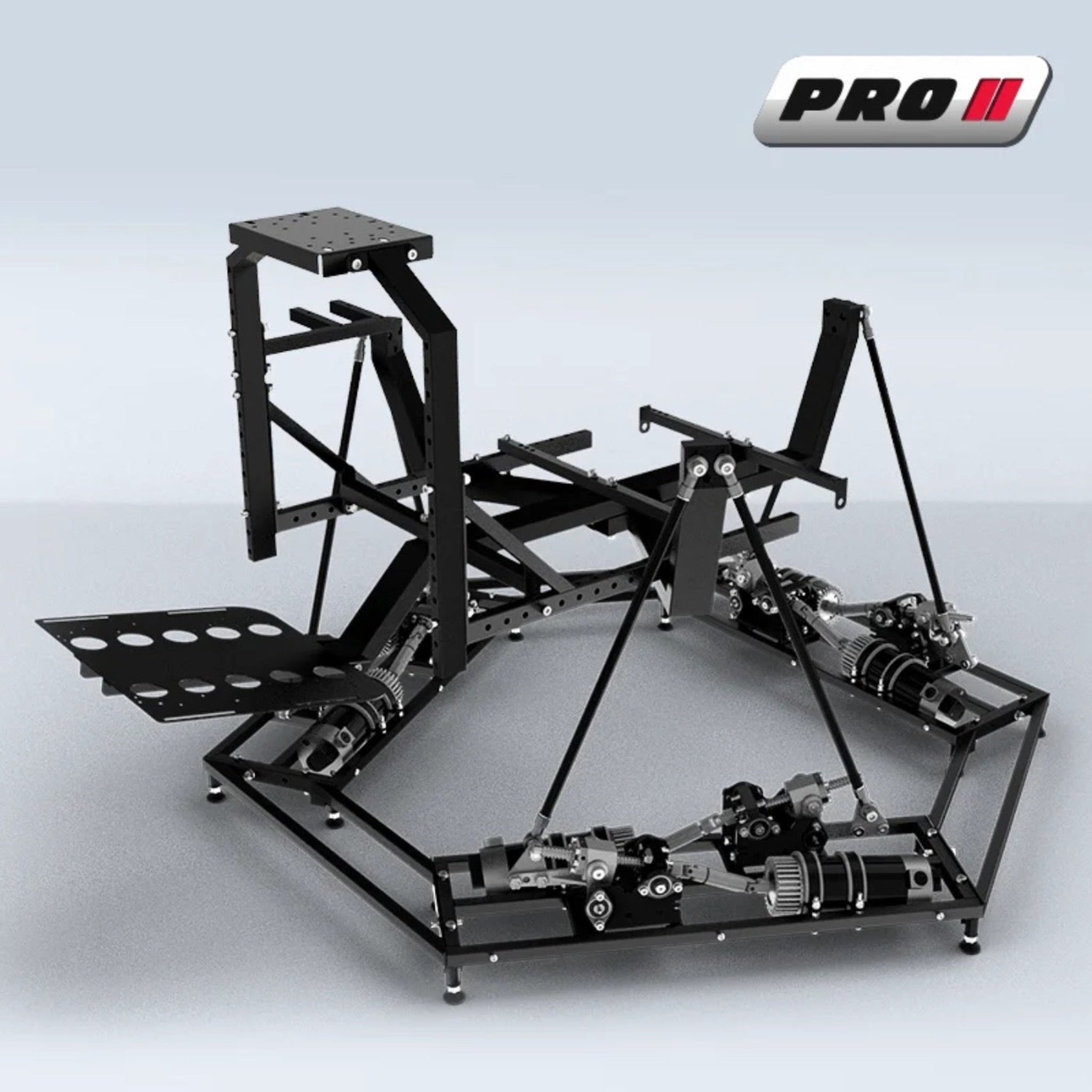

Unlike the enthusiast-oriented H-Series, the P-Series uses stronger, more rigid motors and upgraded gear systems engineered for extended daily operation (ideal for commercial venues running long sessions back-to-back). Combined with an industrial steel chassis and a universal top platform, the P6 becomes a true do-it-all motion base for racing, flight, heli, trucking, space, and VR experiences on a single rig.

If you’re ready for top-tier immersion—with full six-axis motion and professional hardware—the P6 is the platform you build everything else on.

Keyboard Holder:

We offer an adjustable keyboard holder that can be comfortably attached to motion parts of the rig and hold the keyboard. The most popular sim keyboard is Logitech K400 Plus Wireless Keyboard with Touch Pad .

Q: What’s the main difference between the H6 and the P6?

The H6 and P6 both offer full 6-axis motion (heave, roll, pitch, surge, sway and yaw), but the P6 is part of the Professional P-Series, which uses stronger, more rigid motors, smoother drives and a reinforced chassis aimed at commercial and heavy-duty use, where rigs may run many hours per day. The H6 targets high-end home/enthusiast setups; the P6 is built for professional and business environments that need maximum durability and uptime.

Q: What does “6-axis” actually give me over 2- or 3-axis platforms?

A 2-axis rig can tilt (pitch/roll), a 3-axis with traction loss adds yaw rotation at the rear—but the P6’s 6DOF design introduces true vertical movement and translational shifts (heave, surge, sway). That means you can feel road texture, bumps, potholes, turbulence, sinking sensation on descent, crosswind push, launch/landing and full body weight shifts in all directions, not just tilting and rotating.

Q: Is the P6 only for racing or can I use it for flight, heli and other sims?

It’s designed as a Universal Motion Platform, so it’s excellent for racing, flight, helicopter, truck and space simulators, as well as custom training applications. You can swap the top-side cockpit from a GT car to an airliner flight deck or a heli HOTAS/collective without changing the underlying 6-axis platform.

Q: How loud is the P6 during operation?

For a 6DOF motion base, the P6 is relatively controlled—expect sound levels similar to a busy PC or low-to-mid 50 dB environment under typical loads. You’ll hear mechanical movement when running aggressive profiles, but in a dedicated sim room, studio or arcade the noise level is usually very manageable.

Q: How difficult is it to assemble and set up?

If you’re comfortable assembling a sim rig or other large equipment, P6 setup is very achievable. You’ll build the frame, bolt down the motion base, mount your seat and controls, connect the control box, and install motion software on a PC. Plan for a few hours to do it carefully, with extra time for tuning your ergonomics and motion profiles.

Q: What do I need to provide myself?

You provide the seat, controls (wheel/yoke/HOTAS/collective), pedals, button boxes, monitors or VR headset, PC and sim titles. The P6 package provides the motion base, frame, motors, electronics and hardware, giving you freedom to choose exactly which peripherals and cockpit style you want.

Q: How much room do I need for a P6 setup?

While the base footprint isn’t huge, the platform must move in six directions, so you should allow at least 12–18 inches of clearance around the rig in every direction and enough space for the user to get in and out safely. A planning area of around 6 ft x 6 ft with good ceiling height works well for most installations.

Q: What’s the weight capacity of the P6?

The P-Series platforms are designed for heavier duty use; typical guidance suggests a combined capacity of around 200 kg (about 440 lb) for user + seat + attached cockpit components, depending on how weight is distributed. Very heavy custom builds should be discussed with us so we can verify the configuration.

Q: Which games are supported?

Through motion engines such as SimRacingStudio and SimTools, the P6 can connect to a wide range of racing and flight titles, including iRacing, Assetto Corsa/Competizione, F1 series, Project CARS, Automobilista, rFactor, GRID, The Crew, and major flight/space simulators on the dedicated P6 flight/heli pages.

Q: Is the P6 good for VR?

Yes—this is one of its strongest use cases. Paired with VR headsets and motion compensation or rig-mounted tracking, the P6 lets your body feel every tilt, surge, bump and drift while the VR world stays visually stable, creating an extremely immersive “in-cockpit” experience.

Q: How much maintenance does it require?

The P6 is largely maintenance-light, especially for home users. For best longevity, periodically:

• Inspect and tighten frame, seat and control bolts;

• Keep actuators, joints and the control box free of dust;

• Apply light lubrication to moving joints when recommended;

• Listen for unusual sounds that may indicate a loose fastener or misalignment.

Q: Is the P6 suitable for commercial venues and events?

Absolutely—that’s what the P-Series is built around. The stronger motors, industrial chassis and 6DOF motion make the P6 ideal for VR arcades, sim centers, training facilities, event rentals and show-floor experiences where rigs must withstand frequent use and long daily runtimes.

Q: Will it work with Playstation and Xbox?

Yes.

Consoles operate within a closed, controlled, and proprietary platform. Currently, only a select few games, such as Grand Turismo 7, Sport, PCARs, PCARs2, AC, F1, Forza Motorsport 7, and Forza Horizon 4 and 5, send motion data from consoles using UDP over the network (as demonstrated in this video).

For these games, we offer a MagicBox solution priced at $200. To enable motion in all other games, we are developing MagicWheel and MagicPedals, which will be available in two months.

For a list of supported PC and console games, including compatibility with the latest consoles, please refer to our games list.

Q: What seat should I use with your platform?

Your seat setup is all about personal comfort and driving style. The P6 Motion Platform supports almost any bottom-mount car or gaming seat, giving you the freedom to choose what feels best.

We recommend using a bucket-style racing seat for added stability during high-intensity motion. A 4- or 6-point harness can be added for extra security, though it’s optional. For best performance, opt for a lightweight seat, as it allows the motion platform to react faster and more precisely.

You can purchase a suitable seat from Amazon, JEGS, or eBay, or even check local listings and racing communities for single bucket seats. When shopping, look for non-certified racing seats — they deliver the same experience at a much lower price compared to FIA-certified options.

For convenience and easy adjustment, we recommend using a standard bottom-mount car seat with sliders or rails, similar to what’s found in real cars. If you choose a bucket seat, you may need side-to-bottom bracket adapters and slider rails for installation.

Seat Mount Dimensions:

• Depth: 280 mm (front to back)



• Width options: 345 mm (13.37”), 375 mm (14.49”), or 405 mm (15.94”)



Q: How motion cancellation / compensation works with your platforms?

The DOF Reality motion simulator is fully compatible with all major VR headsets. However, combining motion simulation with VR requires a few setup considerations to ensure smooth and immersive gameplay.

When your motion platform moves, your head—and therefore your VR headset—moves too. This can slightly shift the in-game view since the headset’s sensors interpret real-world motion. In most cases, this effect is minimal and won’t affect gameplay. You can see a clear example of this in action here:

Example Video

If you notice excessive camera movement or “swimming” effects in your VR image, try reducing the platform’s motion intensity in your software settings. This simple adjustment often delivers a much smoother experience.

Software Solutions for Motion Compensation

If reducing motion doesn’t help enough, you can use motion compensation software to correct the visual offset automatically.

We recommend OpenVR Motion Compensation — the most up-to-date and community-supported software for this purpose. It tracks the platform’s motion using a small tracker and removes that motion from your VR headset’s perspective, creating a stable visual experience.

• OpenVR Motion Compensation Tutorial Video



• OpenVR Motion Compensation Install & Setup Guide

This software works with both base-station (outside-in) and camera-based (inside-out) tracking systems.

Supported VR Systems:

• Outside-In Tracking (Base Stations): Valve Index, HTC Vive Cosmos, Pimax 5K/8K*, and the original Oculus Rift (CV1)



• Inside-Out Tracking (Headset Cameras): HP Reverb/G2, Oculus Quest/Quest 2/Rift S**, Samsung Odyssey+, and Windows Mixed Reality headsets

Mounting and Tracking Setup

For base-station VR systems, mount a Valve Index Controller, HTC Vive Controller, or Vive Tracker directly to your motion platform. The tracker must be visible to all base stations—most users attach it near the headrest or top of the chair.

For inside-out tracking systems, mount an Oculus Touch Controller or WMR Controller on the front of the platform, ensuring it remains in clear view of the headset’s cameras.

In all cases, make sure the tracker is:

1. Securely mounted to the platform.



2. Isolated from vibration using additional weight or vibration-dampening materials like Sorbothane or soft rubber.

Additional Software Options

An older alternative is OpenVR Input Emulator, which still has limited community support despite being discontinued.

Download OpenVR Input Emulator

Platform-Specific Resources:

• HTC Vive/Vive Pro Setup Guide (PDF)



• Oculus Rift Setup Guide (PDF)



• Pimax PiTool Software – enable “Motion Cancellation” under settings by selecting a Valve Index Controller as the motion sensor. (Note: functionality may vary.)

Important Note for Oculus Devices:

Because Oculus devices rely on Valve’s SteamVR driver, some users may notice:

• Occasional black borders during large platform motions.



• Slight inaccuracies in rotational compensation.

Hardware (Non-Software) Motion Compensation Methods

If you prefer a hardware-based fix, there are a few effective workarounds:

• For inside-out tracking headsets: Cover one of the headset’s tracking cameras with tape to minimize tracking movement. See video tutorial



• For Oculus Rift users: Use the included DOF Oculus mount to attach the Rift sensor directly to the platform and cover the headset cameras. This prevents the headset from visually jumping but disables full rotation tracking. To compensate, reduce yaw movement in your DOF software.



• For original Oculus Rift (CV1): You can mount the sensor to the front of your DOF Reality platform using the provided bracket (mounts to the two rear holes on the wheel deck plate). Due to recent Oculus software updates, results may vary.

Additional VR Motion Compensation Resources

• OpenVR Motion Compensation Tested Devices



• XSimulator Motion Compensation Thread



• XSimulator Motion Cancellation Thread



• HTC Vive Tracker Mount Example
