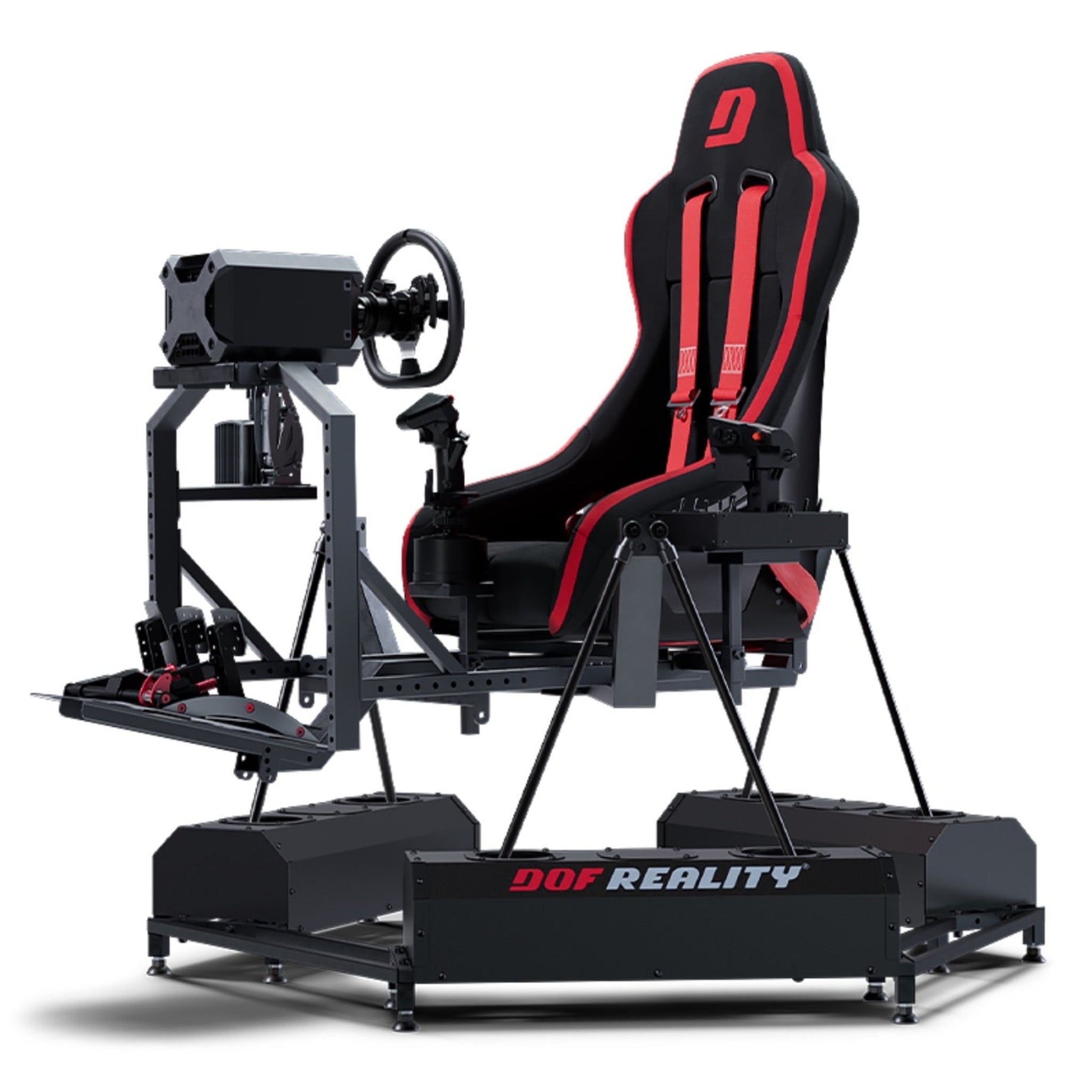

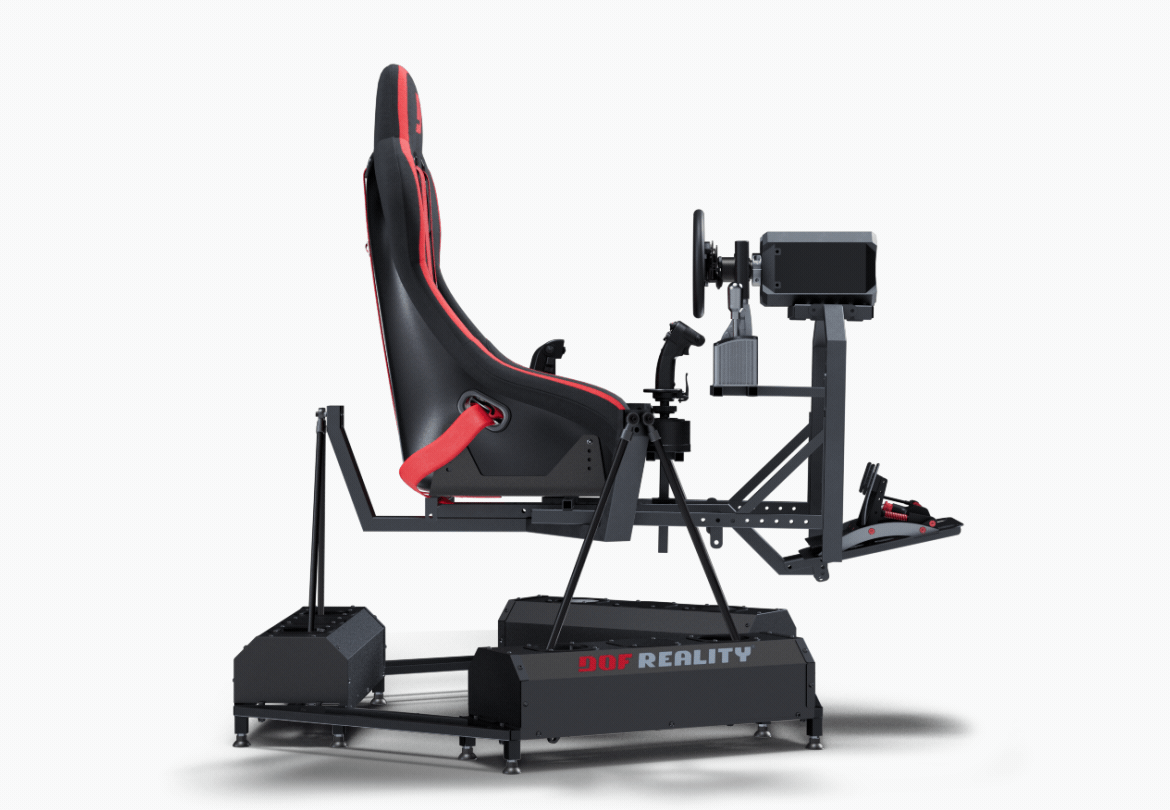

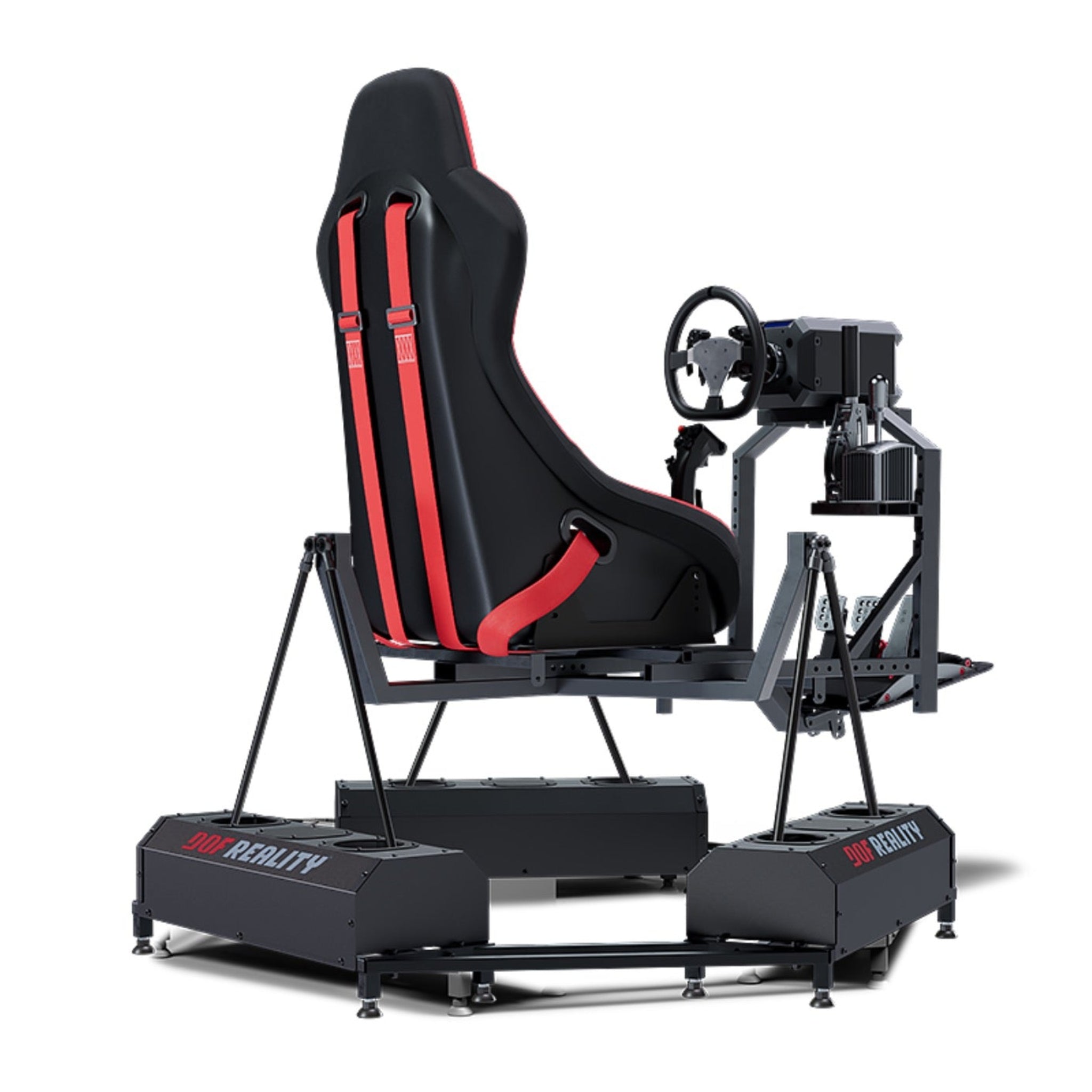

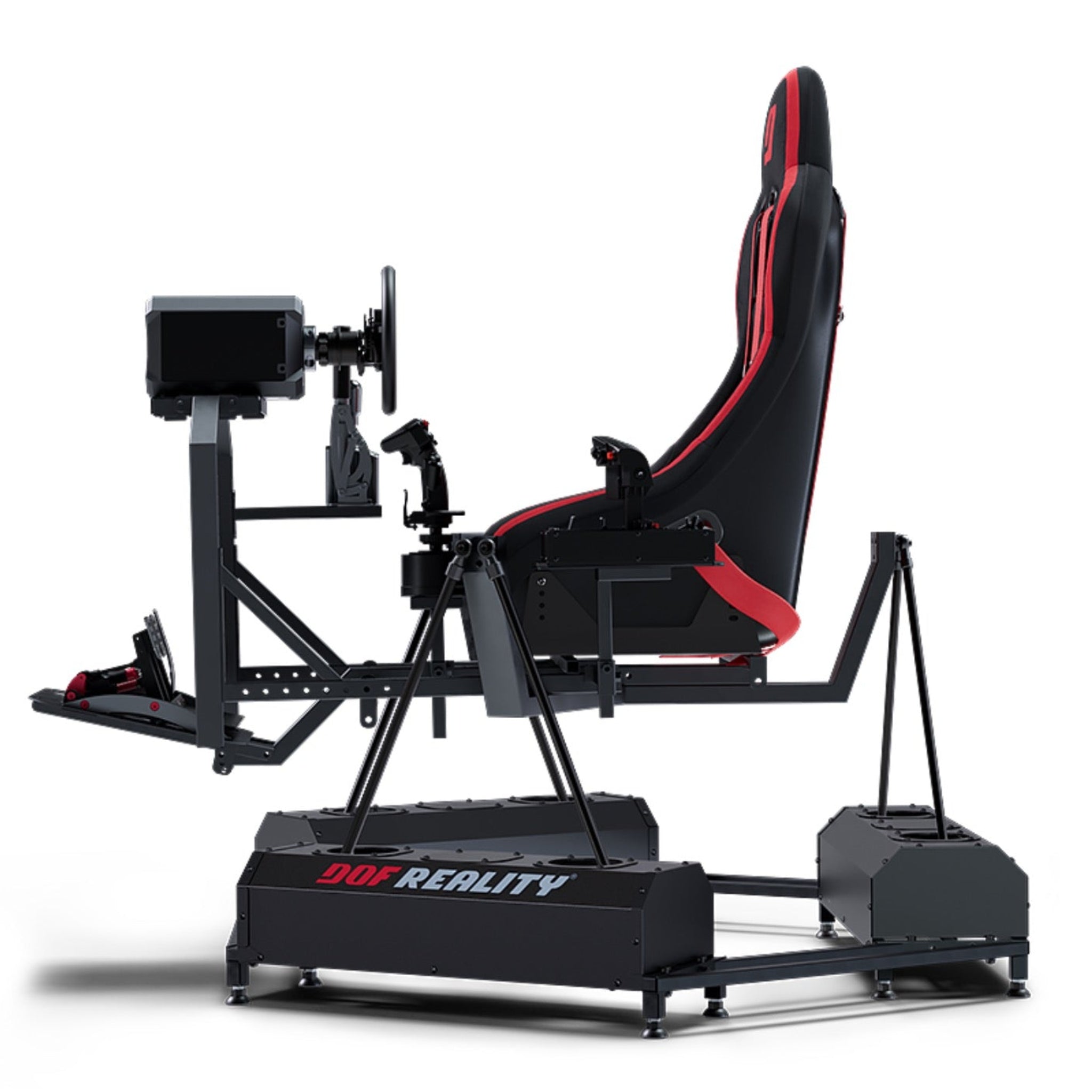

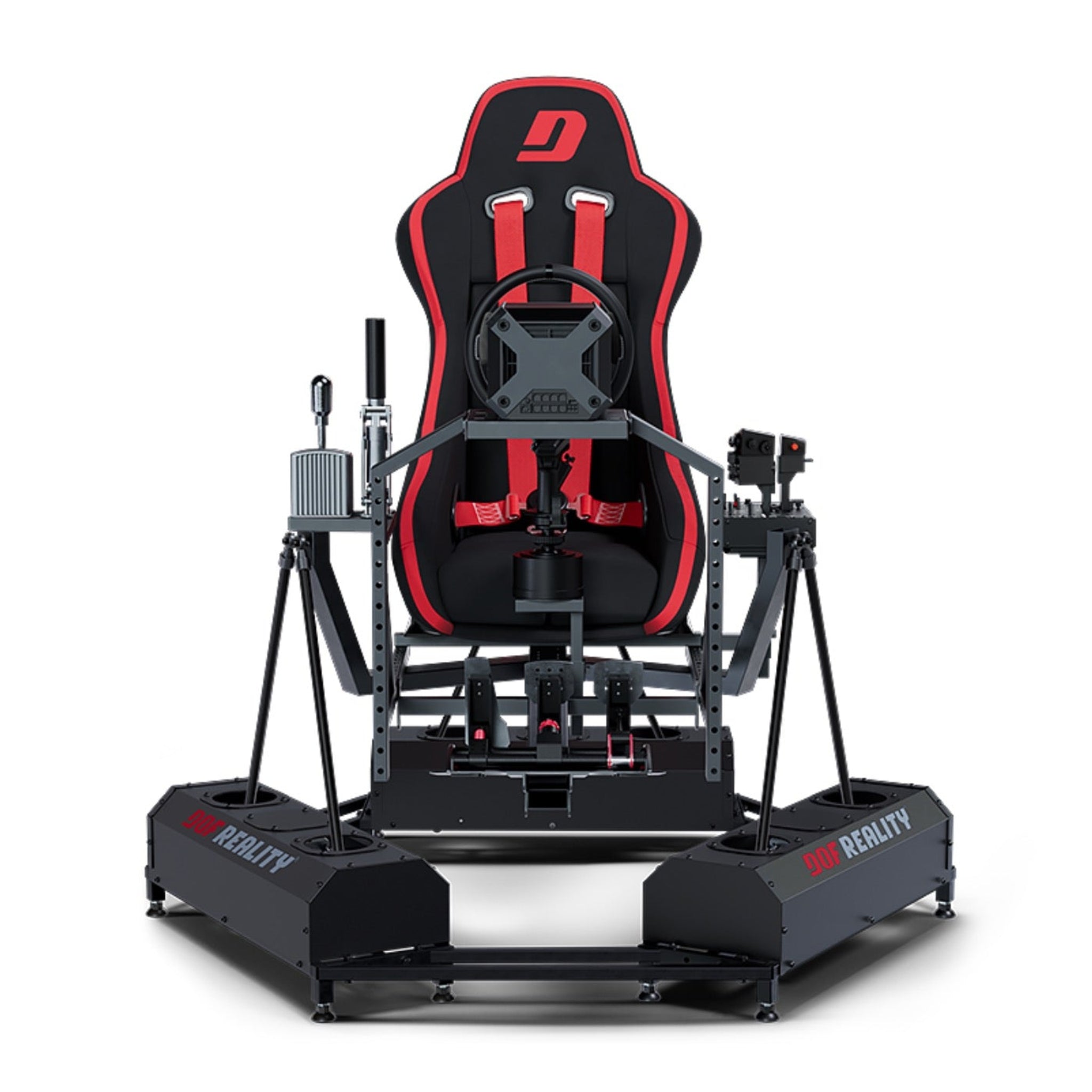

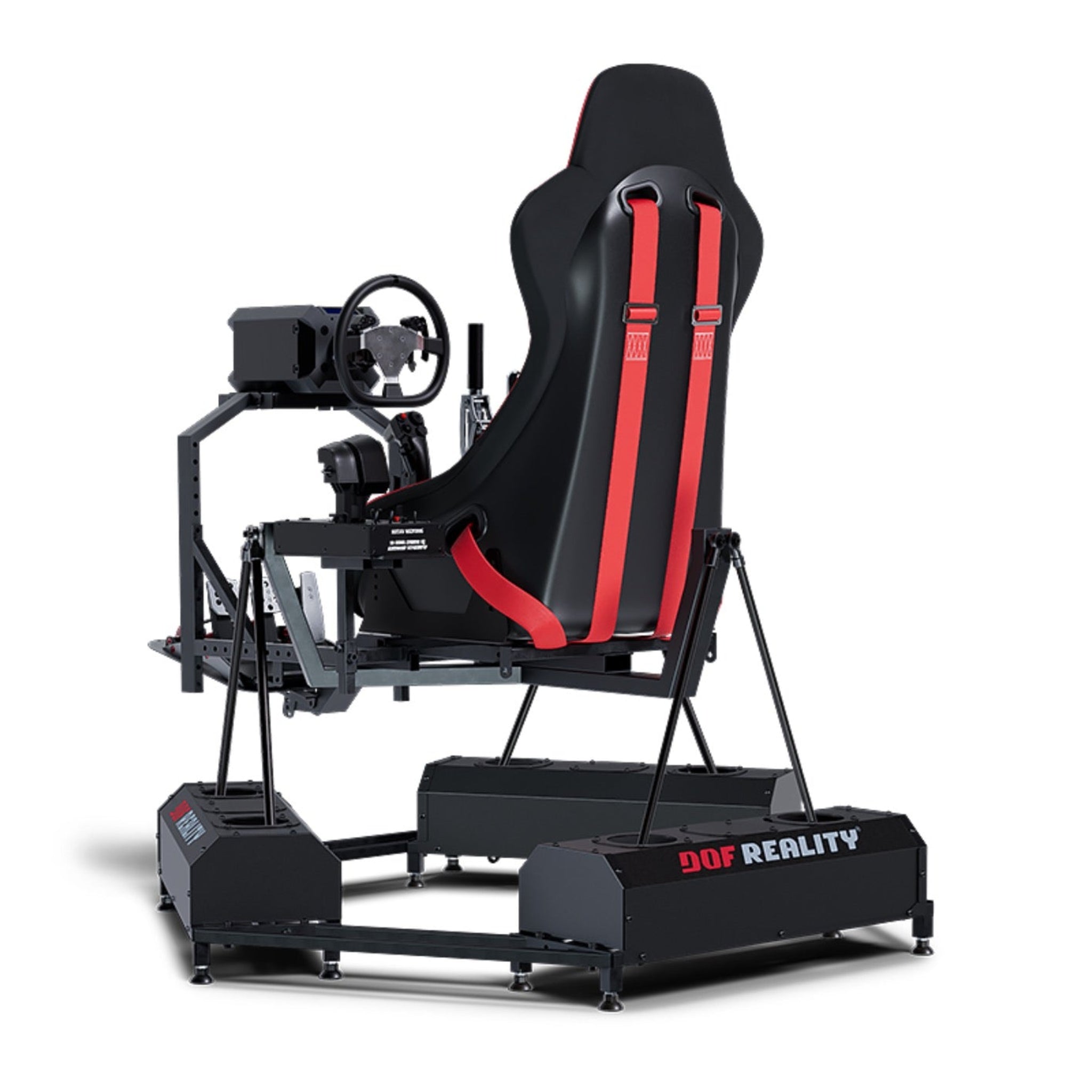

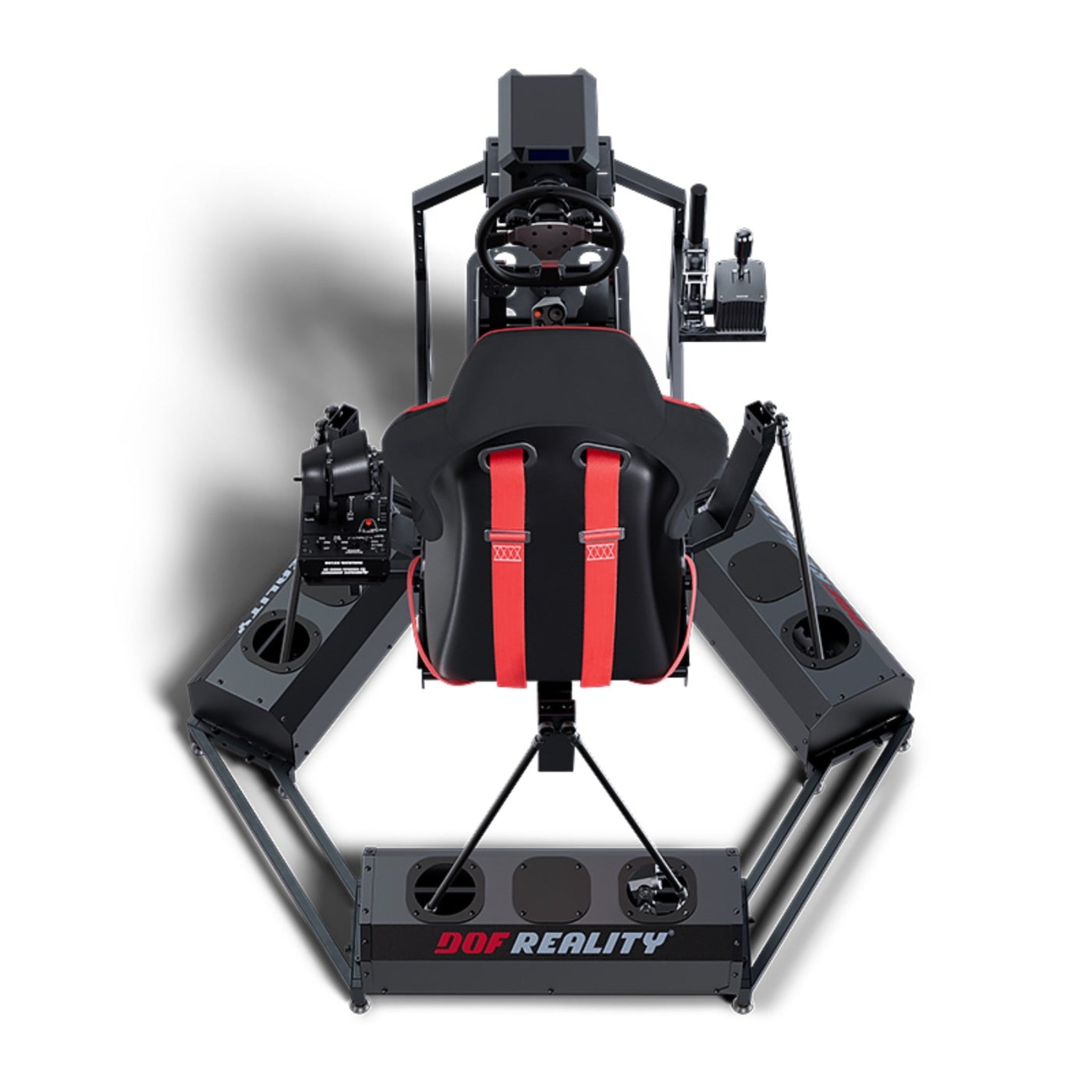

DOF Reality H6 Universal Motion Simulator Platform

Total motion freedom for the most realistic simulation experience on Earth.

Meet the DOF Reality H6 HERO Universal Motion Simulator, the flagship motion platform for elite sim pilots, drivers, and training professionals who demand nothing short of total immersion. With six degrees of freedom — Heave, Sway, Surge, Pitch, Roll, and Yaw — the H6 replicates every physical sensation your body feels in a real aircraft or vehicle.

From vertical turbulence and sudden lift loss to banked turns, ground rumble, and lateral G-forces, the H6 recreates it all with stunning precision. Whether you’re climbing through storm clouds in Microsoft Flight Simulator, performing aerobatic maneuvers in DCS World, or attacking curbs in Assetto Corsa Competizione, the H6 turns every scenario into a true-to-life experience.

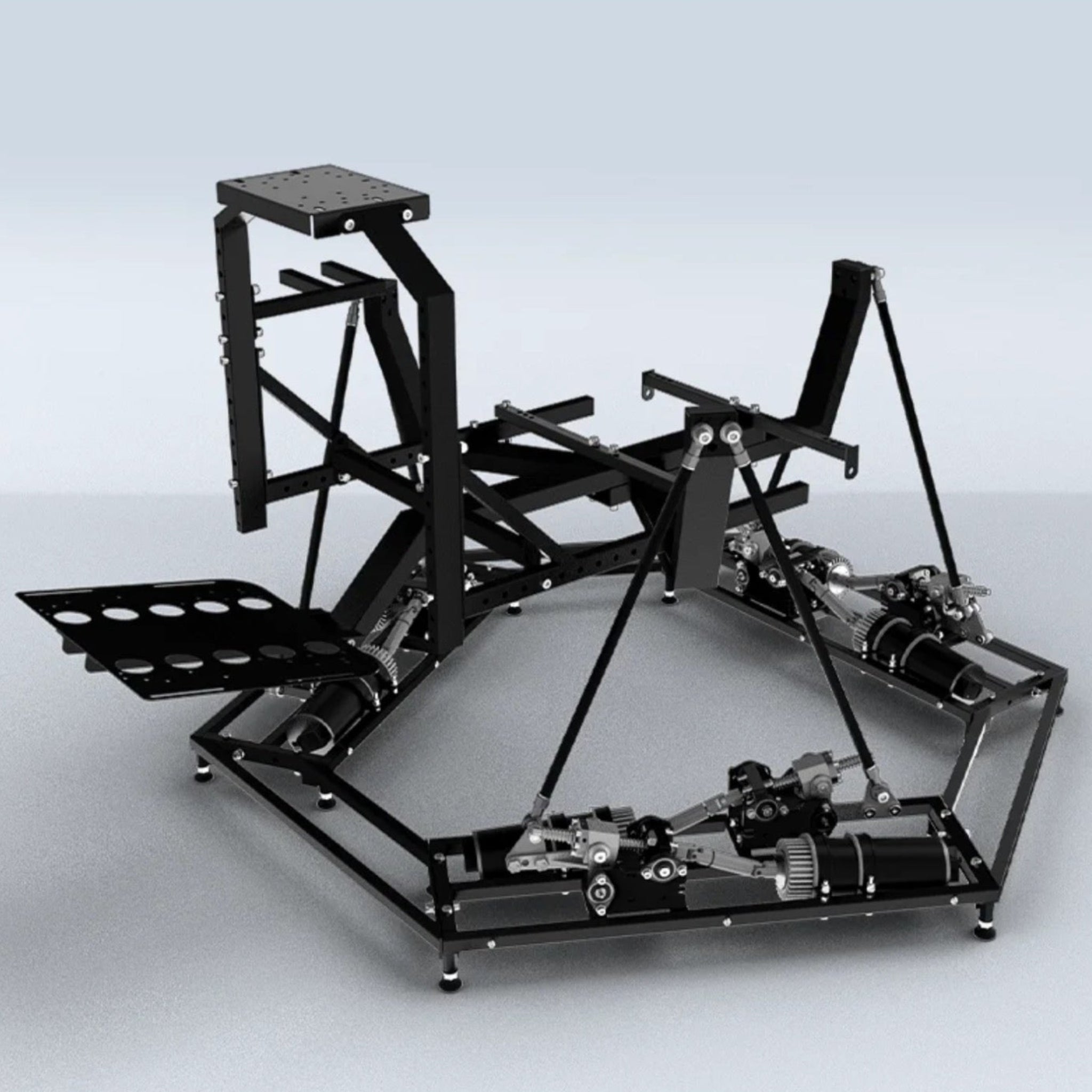

Engineered with professional-grade actuators, an intelligent motion control system, and an ultra-stable chassis, this is the most advanced consumer-accessible 6DOF platform on the market today.

Keyboard Holder:

We offer an adjustable keyboard holder that can be comfortably attached to motion parts of the rig and hold the keyboard. The most popular sim keyboard is Logitech K400 Plus Wireless Keyboard with Touch Pad .

Q: How is the H6 different from the H2 or H3?

The H2 has two axes (pitch & roll), the H3 adds yaw, and the H6 expands to all six — adding heave (vertical), surge (forward/backward), and sway (side-to-side). This results in complete physical realism unmatched by partial-motion systems.

Q: Will it work with Playstation and Xbox?

Yes.

Consoles operate within a closed, controlled, and proprietary platform. Currently, only a select few games, such as Grand Turismo 7, Sport, PCARs, PCARs2, AC, F1, Forza Motorsport 7, and Forza Horizon 4 and 5, send motion data from consoles using UDP over the network (as demonstrated in this video).

For these games, we offer a MagicBox solution priced at $200. To enable motion in all other games, we are developing MagicWheel and MagicPedals, which will be available in two months.

For a list of supported PC and console games, including compatibility with the latest consoles, please refer to our games list.

Q: What seat should I use with your platform?

Your seat setup is all about personal comfort and driving style. The H6 Motion Platform supports almost any bottom-mount car or gaming seat, giving you the freedom to choose what feels best.

We recommend using a bucket-style racing seat for added stability during high-intensity motion. A 4- or 6-point harness can be added for extra security, though it’s optional. For best performance, opt for a lightweight seat, as it allows the motion platform to react faster and more precisely.

You can purchase a suitable seat from Amazon, JEGS, or eBay, or even check local listings and racing communities for single bucket seats. When shopping, look for non-certified racing seats — they deliver the same experience at a much lower price compared to FIA-certified options.

For convenience and easy adjustment, we recommend using a standard bottom-mount car seat with sliders or rails, similar to what’s found in real cars. If you choose a bucket seat, you may need side-to-bottom bracket adapters and slider rails for installation.

Seat Mount Dimensions:

• Depth: 280 mm (front to back)



• Width options: 345 mm (13.37”), 375 mm (14.49”), or 405 mm (15.94”)

Q: Can I use it for both racing and flight?

Absolutely. The H6 was designed for hybrid use. It’s equally capable in aircraft and race vehicles — from fighter jets to Formula 1 cars.

Q: Does it support VR headsets?

Yes. The H6 integrates flawlessly with VR systems like Meta Quest, HP Reverb, HTC Vive, and Pimax. Motion compensation tools prevent drift and maintain seamless alignment with your in-game visuals.

Q: How loud is the platform?

The H6 is designed for quiet performance — under 50 dB, even under full motion. The sound is comparable to a soft whirring, suitable for indoor or shared spaces.

Q: How hard is it to assemble?

The platform comes partially pre-assembled. Most users complete installation and calibration in about 1–2 hours using basic hand tools.

Q: Can I upgrade components later?

Yes. The H6 supports modular add-ons such as advanced controllers, joystick mounts, and extended actuator kits for specialized applications.

Q: What’s the maintenance like?

Virtually zero — just occasional bolt checks and lubrication every few months. DOF Reality rigs are built for years of use.



Q: How motion cancellation / compensation works with your platforms?

The DOF Reality motion simulator is fully compatible with all major VR headsets. However, combining motion simulation with VR requires a few setup considerations to ensure smooth and immersive gameplay.

When your motion platform moves, your head—and therefore your VR headset—moves too. This can slightly shift the in-game view since the headset’s sensors interpret real-world motion. In most cases, this effect is minimal and won’t affect gameplay. You can see a clear example of this in action here:

Example Video

If you notice excessive camera movement or “swimming” effects in your VR image, try reducing the platform’s motion intensity in your software settings. This simple adjustment often delivers a much smoother experience.

Software Solutions for Motion Compensation

If reducing motion doesn’t help enough, you can use motion compensation software to correct the visual offset automatically.

We recommend OpenVR Motion Compensation — the most up-to-date and community-supported software for this purpose. It tracks the platform’s motion using a small tracker and removes that motion from your VR headset’s perspective, creating a stable visual experience.

• OpenVR Motion Compensation Tutorial Video



• OpenVR Motion Compensation Install & Setup Guide

This software works with both base-station (outside-in) and camera-based (inside-out) tracking systems.

Supported VR Systems:

• Outside-In Tracking (Base Stations): Valve Index, HTC Vive Cosmos, Pimax 5K/8K*, and the original Oculus Rift (CV1)



• Inside-Out Tracking (Headset Cameras): HP Reverb/G2, Oculus Quest/Quest 2/Rift S**, Samsung Odyssey+, and Windows Mixed Reality headsets

Mounting and Tracking Setup

For base-station VR systems, mount a Valve Index Controller, HTC Vive Controller, or Vive Tracker directly to your motion platform. The tracker must be visible to all base stations—most users attach it near the headrest or top of the chair.

For inside-out tracking systems, mount an Oculus Touch Controller or WMR Controller on the front of the platform, ensuring it remains in clear view of the headset’s cameras.

In all cases, make sure the tracker is:

1. Securely mounted to the platform.



2. Isolated from vibration using additional weight or vibration-dampening materials like Sorbothane or soft rubber.

Additional Software Options

An older alternative is OpenVR Input Emulator, which still has limited community support despite being discontinued.

Download OpenVR Input Emulator

Platform-Specific Resources:

• HTC Vive/Vive Pro Setup Guide (PDF)



• Oculus Rift Setup Guide (PDF)



• Pimax PiTool Software – enable “Motion Cancellation” under settings by selecting a Valve Index Controller as the motion sensor. (Note: functionality may vary.)

Important Note for Oculus Devices:

Because Oculus devices rely on Valve’s SteamVR driver, some users may notice:

• Occasional black borders during large platform motions.



• Slight inaccuracies in rotational compensation.

Hardware (Non-Software) Motion Compensation Methods

If you prefer a hardware-based fix, there are a few effective workarounds:

• For inside-out tracking headsets: Cover one of the headset’s tracking cameras with tape to minimize tracking movement. See video tutorial



• For Oculus Rift users: Use the included DOF Oculus mount to attach the Rift sensor directly to the platform and cover the headset cameras. This prevents the headset from visually jumping but disables full rotation tracking. To compensate, reduce yaw movement in your DOF software.



• For original Oculus Rift (CV1): You can mount the sensor to the front of your DOF Reality platform using the provided bracket (mounts to the two rear holes on the wheel deck plate). Due to recent Oculus software updates, results may vary.

Additional VR Motion Compensation Resources

• OpenVR Motion Compensation Tested Devices



• XSimulator Motion Compensation Thread



• XSimulator Motion Cancellation Thread



• HTC Vive Tracker Mount Example
