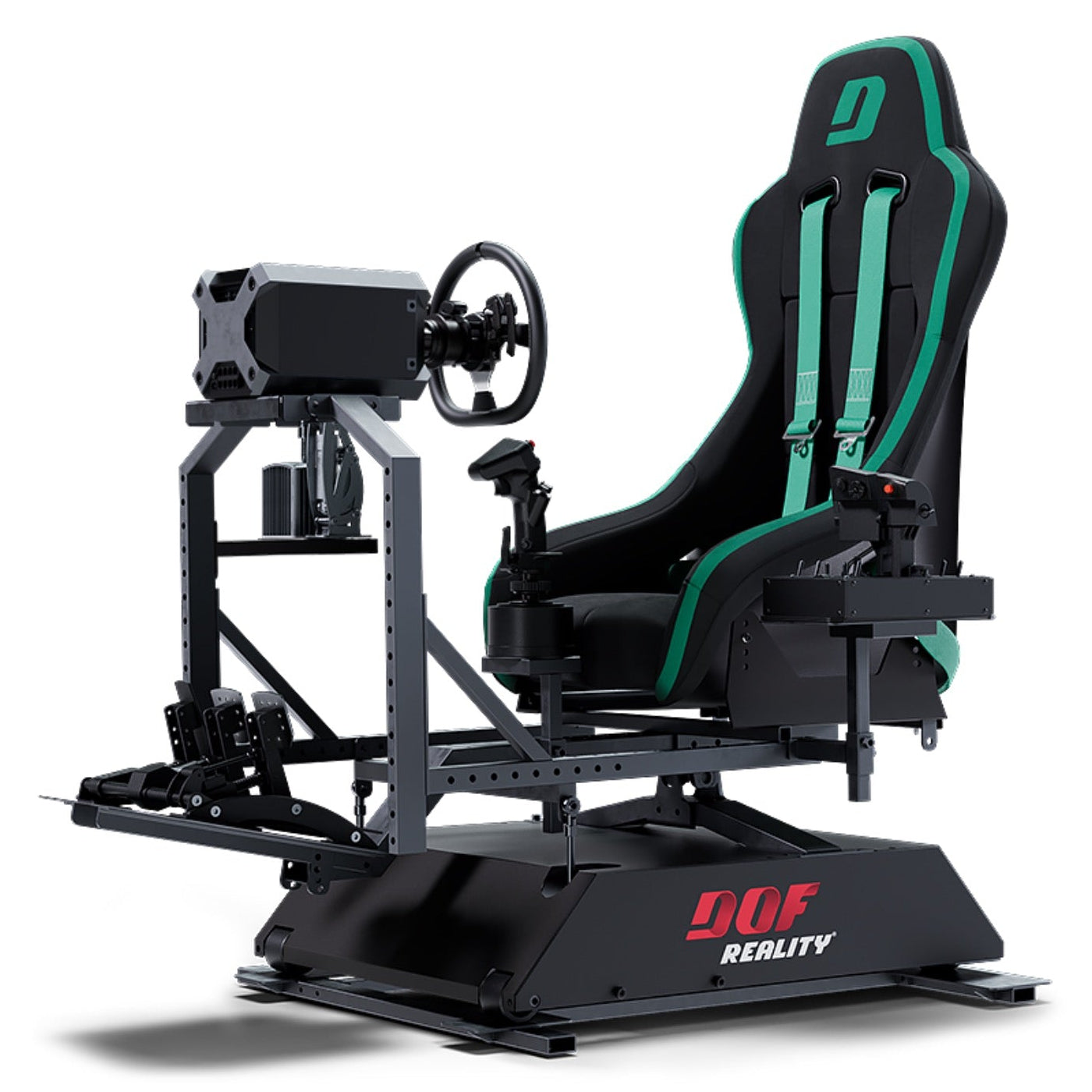

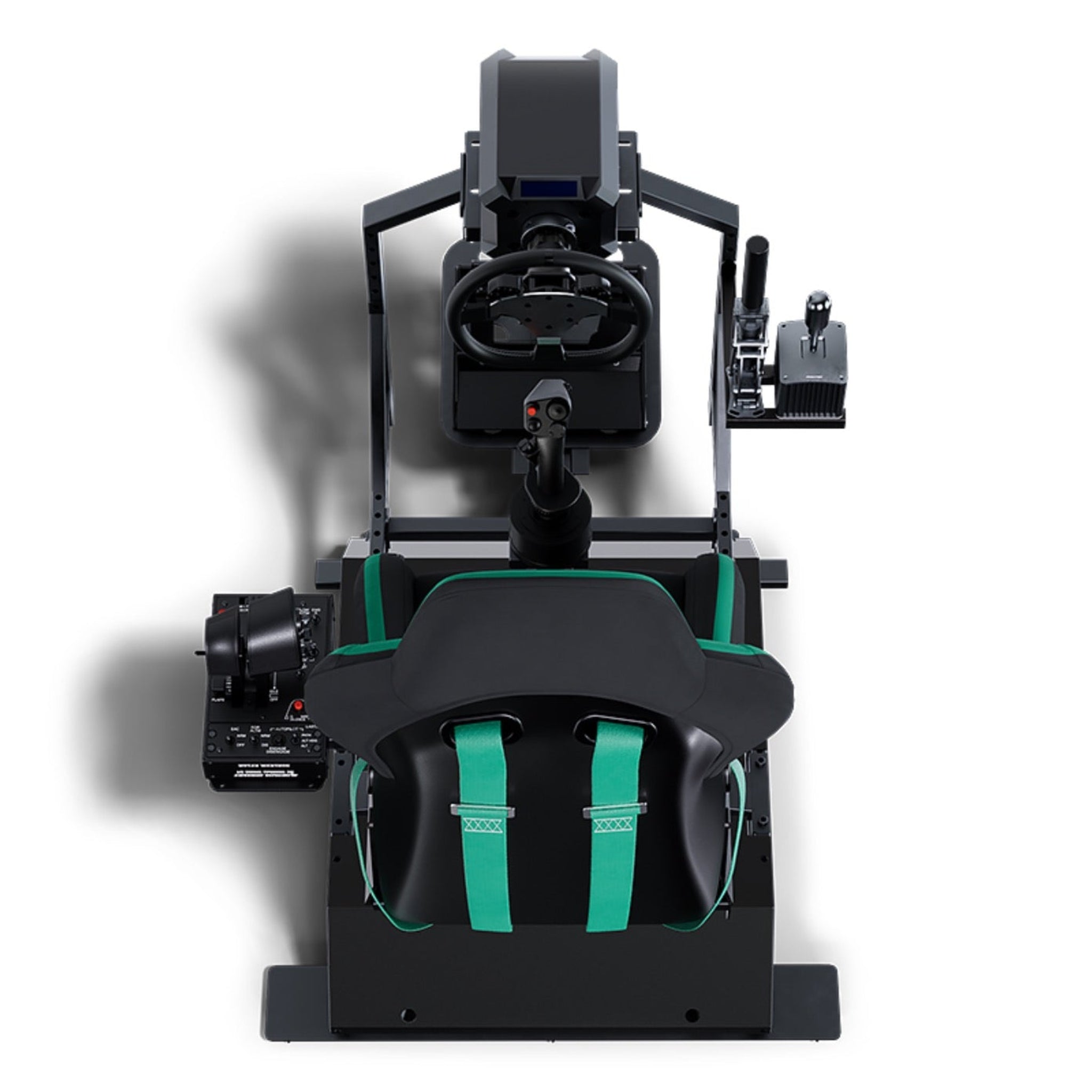

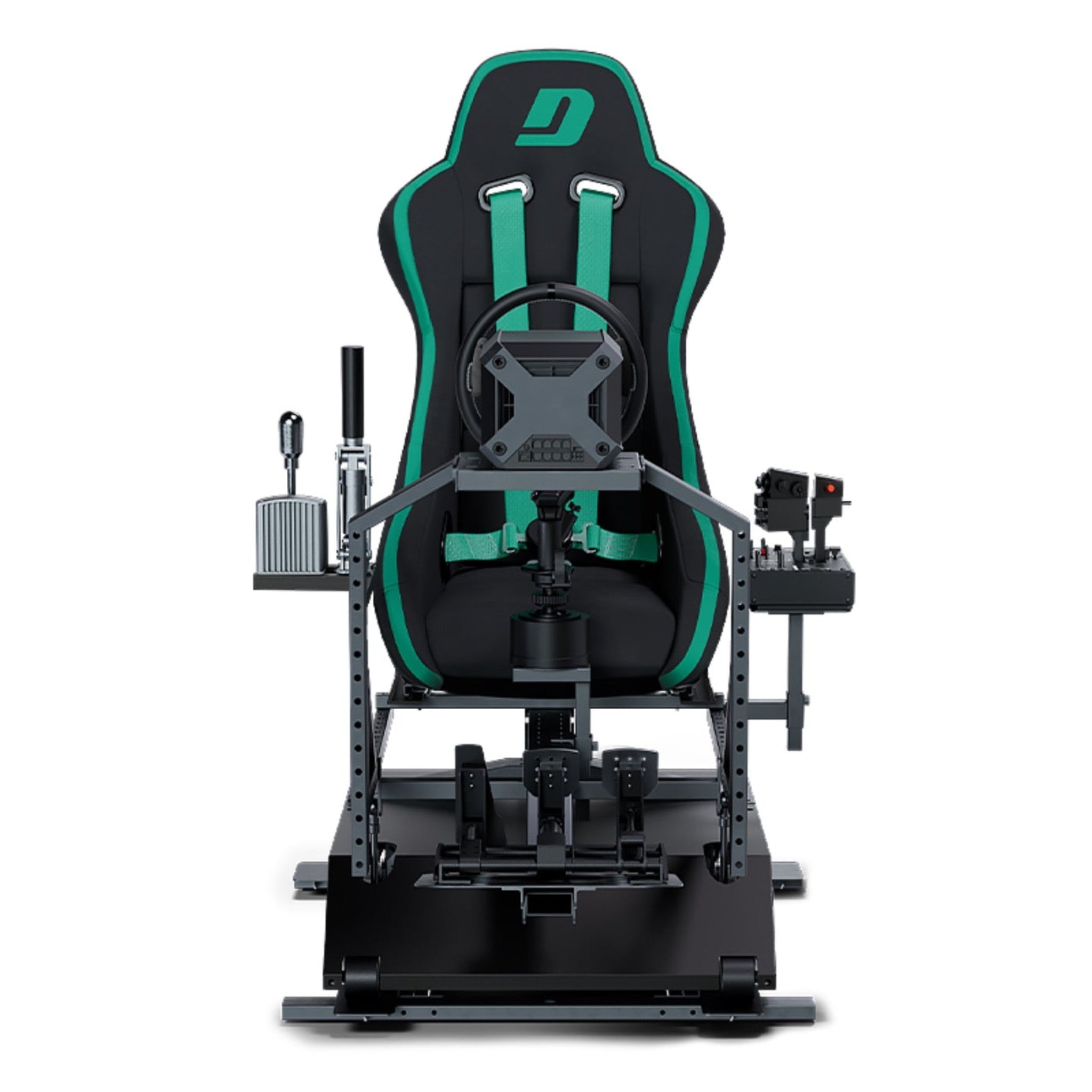

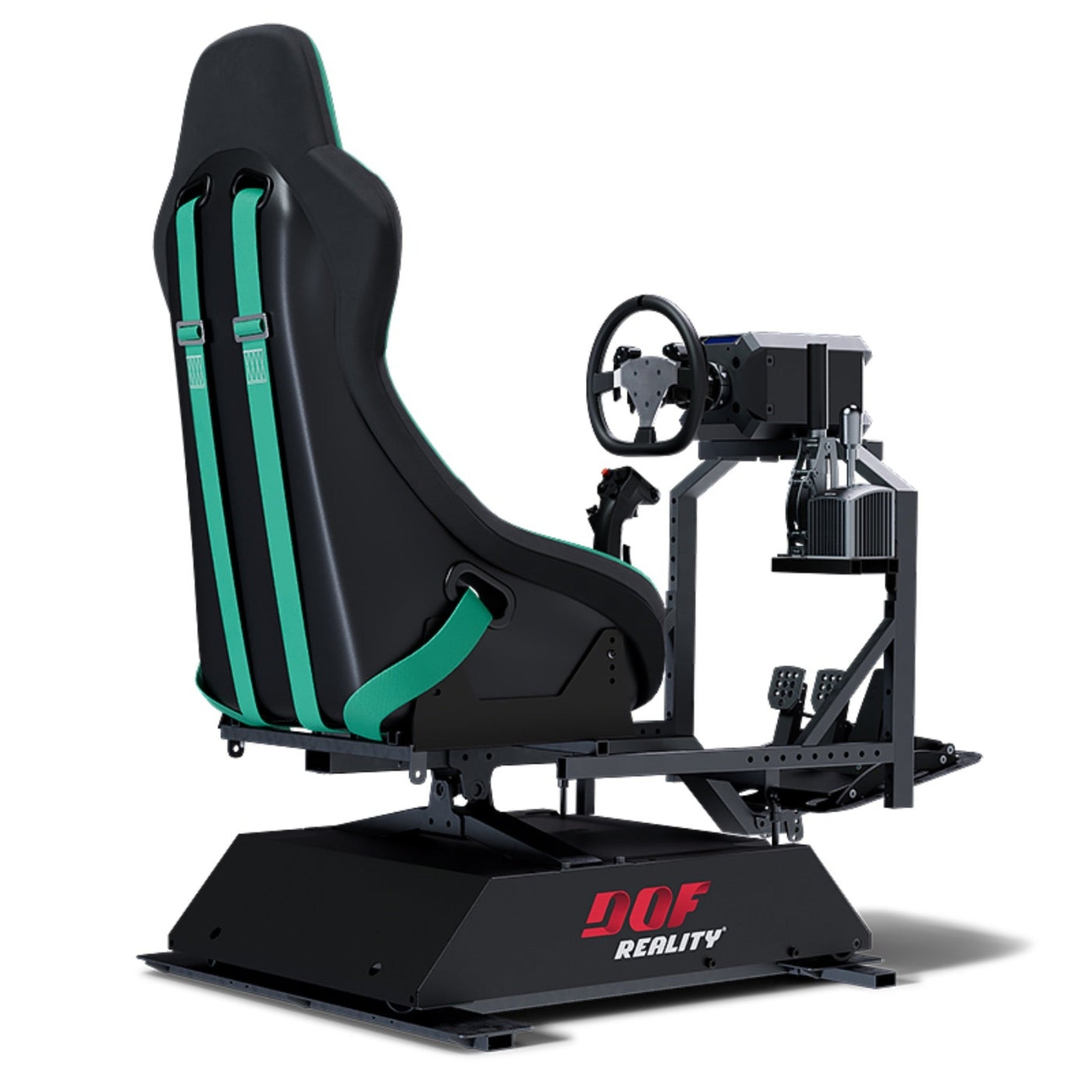

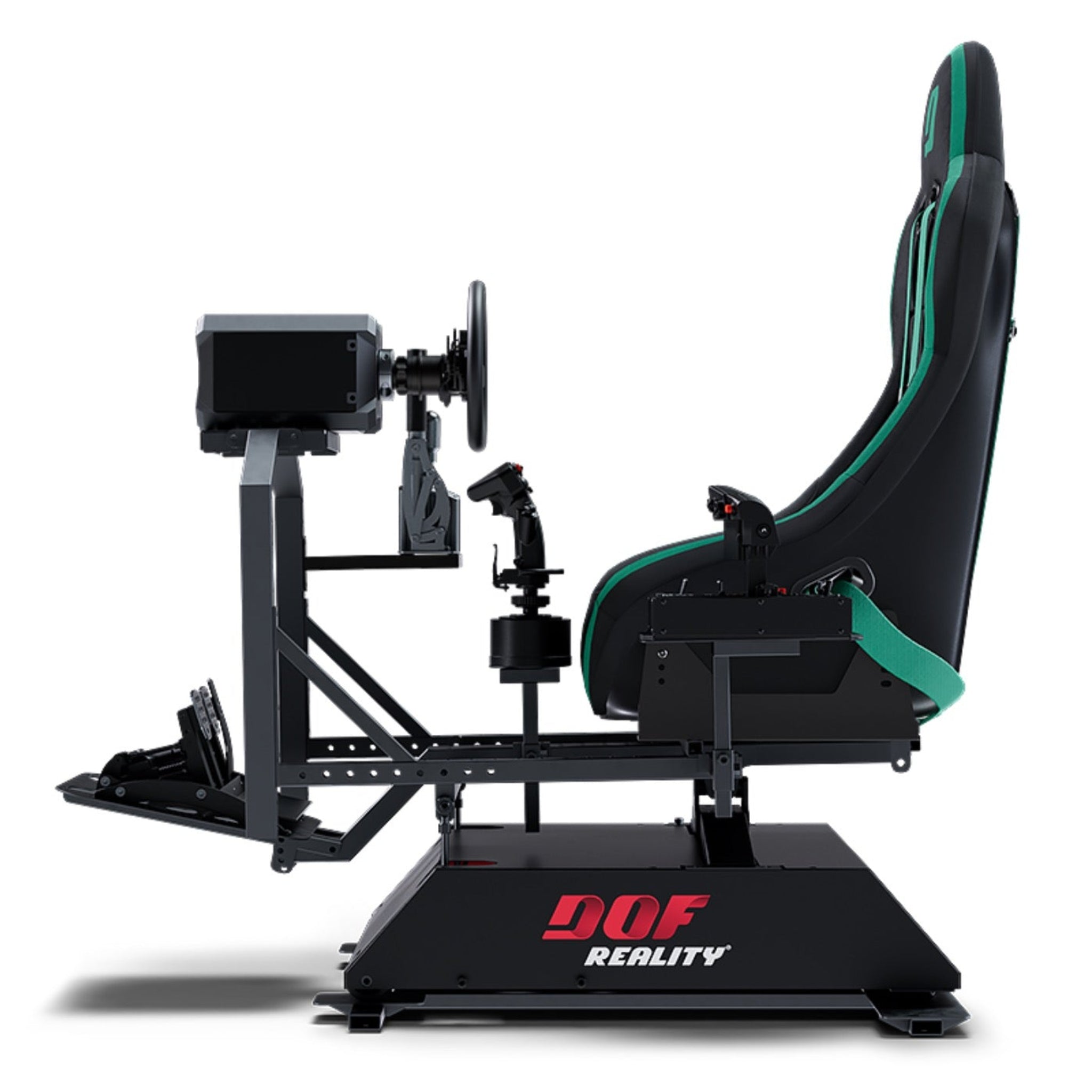

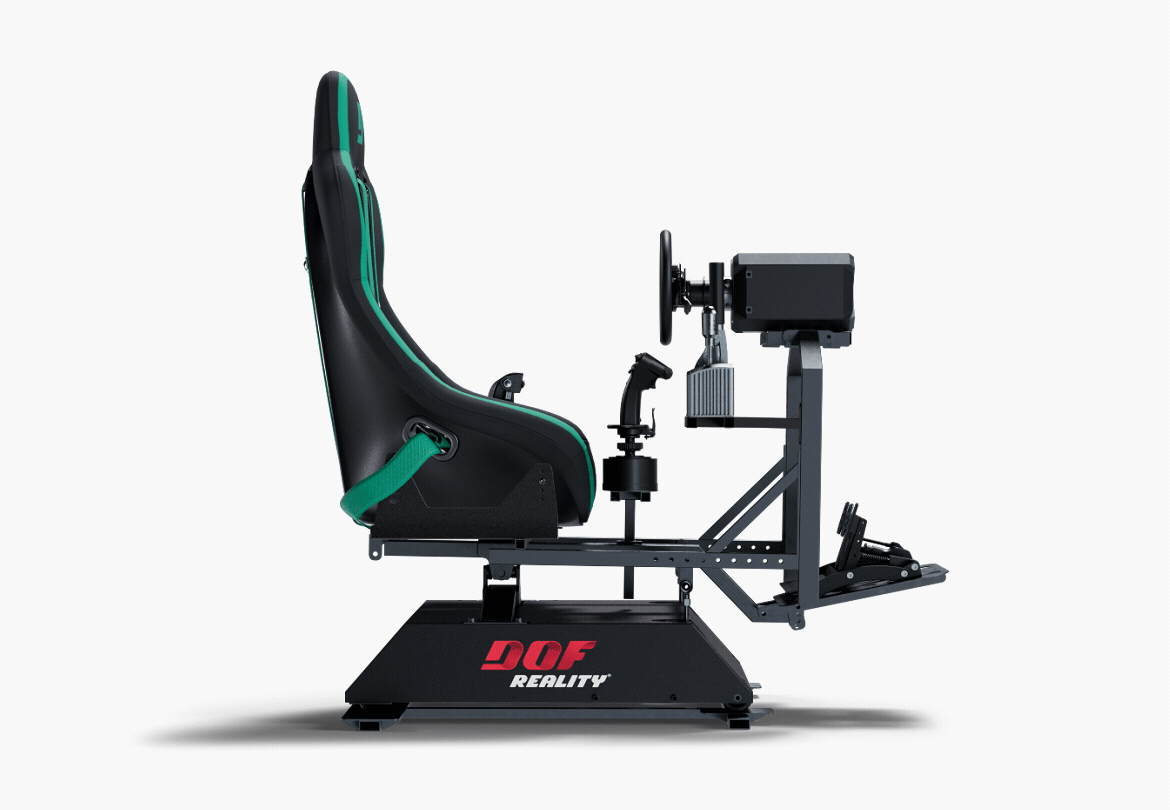

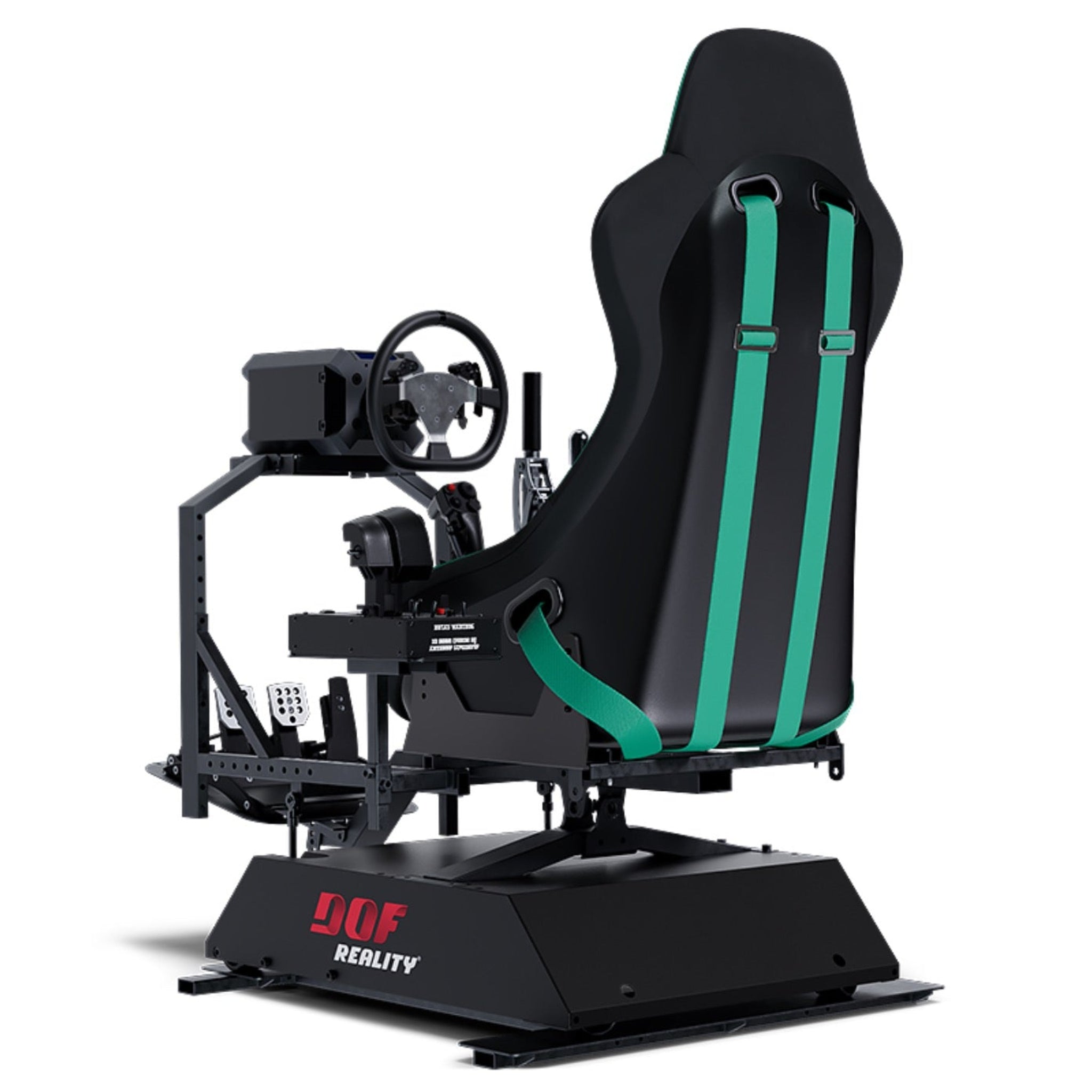

DOF Reality H3 3-Axis HERO Universal Motion Simulator Platform
Elevate your simulation. Feel the physics. Live the motion.
Step into a cockpit that doesn’t just look real — it feels real. The DOF Reality H3 3-Axis HERO Universal Motion Platform brings your favorite flight and racing simulations to life with synchronized, full-cockpit movement across three degrees of freedom: pitch, roll, and yaw.
Whether you’re banking into a turn at 30,000 feet, dodging turbulence, or drifting through hairpin corners on a racetrack, the H3 replicates motion with fluid precision. Engineered for durability, quiet performance, and easy setup, this motion platform is a professional-grade simulator base built for serious home and training environments.
From passionate flight enthusiasts to competitive e-sports drivers, the H3 Universal offers true-to-life motion immersion designed to blur the line between simulation and reality.
Product Features
Experience True 3-Axis Motion Immersion
The DOF Reality H3 platform gives you three synchronized axes of motion that recreate real-world dynamics and simulator feedback in real time.
| Axis | Function | What You Feel |
|---|---|---|
|
Pitch Forward / Back Tilt |
Simulates acceleration, braking, take-offs, climbs, and descents. | Feel the cockpit pitch forward under braking or lift back during acceleration or climb. |
|
Roll Side-to-Side Tilt |
Recreates cornering, banking, and lateral movement. | Experience side loading during turns, banking maneuvers, and flight movement. |
|
Yaw Rotational Axis |
Adds rotational movement for drifting, rear traction loss, and aircraft yaw. | Feel realistic skidding, vehicle rotation, rudder input, and directional correction. |
Unlike rigs that only move the seat, the H3 moves your entire cockpit — seat, wheel or yoke, pedals, throttle, and attached controls — together. This creates a more natural relationship between your body and controls during motion.
Designed for Serious Simulation
The H3 is made for users who want commercial-inspired motion performance with home-friendly operation. It is well suited for racing, flight, and hybrid simulator builds.
Industrial-Grade Engineering
Constructed from heavy-duty metal with precision-fit components, the H3 chassis and motion system are built to handle regular simulator use. High-torque motor systems create strong, controlled movement while maintaining smooth operation.
The platform’s low noise profile makes it suitable for home simulator rooms, shared spaces, and late-night sessions.
Smooth, Natural Motion
The H3 translates simulator telemetry into coordinated pitch, roll, and yaw movement. Whether you are experiencing turbulence, cornering force, braking, acceleration, or drifting, the platform helps reproduce the physical feel of the vehicle or aircraft.
Real-Time Telemetry Integration
The system connects with motion software such as:
-
Sim Racing Studio (SRS)
-
SimTools
- FlyPT Mover
These platforms interpret in-game physics data from supported racing and flight titles, including Microsoft Flight Simulator, X-Plane, DCS World, iRacing, Assetto Corsa, Project CARS, Dirt Rally, F1, and more.
Full-Cockpit Motion
Traditional motion seats move only the upper body. The H3 moves the simulator cockpit as one connected platform, helping the controls, seat, and accessories stay in the same relative position while the platform moves around you.
Quiet Operation
The H3’s motors and mechanical system are tuned for smooth operation and low acoustic output. This makes it a strong fit for home simulator rooms, offices, garages, and shared environments.
What's Included
Your purchase includes the core components needed to assemble and begin motion simulation quickly.
| Component | Description |
|---|---|
| H3 Motion Platform Base | 3-axis motion base with pitch, roll, and yaw movement. |
| Universal Mounting Frame | Frame structure designed to support common seat, pedal, wheelbase, yoke, throttle, and control configurations. |
| Electronic Control Unit | USB-based motion controller and power system for motion operation. |
| Software License | Sim Racing Studio license or compatible motion platform software support. |
| Cabling & Power Supply | Required power and connection cables for platform operation. |
| Assembly Tools & Manual | Basic hardware, tools, and setup documentation for assembly. |
| 1-Year Manufacturer Warranty | Warranty coverage for the motion platform under standard use conditions. |
Not Included: Seat, steering wheel or yoke, wheel base, pedals, HOTAS/collective, button boxes, displays, PC, simulator games, and VR headset. These are user-supplied so you can build your ideal cockpit.
Product Specifications
| Specification | Details |
|---|---|
| Degrees of Freedom | 3 DOF: Pitch, Roll, and Yaw |
| Motion Range | Up to ±20° tilt |
| Speed | Up to 50 cm/s, approximately 86°/s |
| Torque Output | Approximately 25 Nm |
| Power Consumption | Approximately 750 W peak |
| Voltage Compatibility | 100–240 V AC |
| Weight Capacity | Up to 440 lbs / 200 kg combined load, depending on configuration |
| Frame Weight | Approximately 85 kg / 187 lbs |
| Noise Level | < 50 dB during typical operation |
| Footprint | Approximately 3 ft × 5 ft / 0.9 m × 1.5 m |
| Supported Platform | Windows PC |
| Software Support | Sim Racing Studio, SimTools, FlyPT, XSim, and other compatible platforms |
| Warranty | 1-Year Manufacturer Warranty |
Exact numerical specs can vary slightly based on configuration and year of manufacture. If you need precise engineering numbers, confirm the current DOF Reality datasheet before purchase.
Setup & Installation Recommendations
-
Manage wiring carefully: Keep all wiring organized and away from moving components.
-
Inspect hardware: Check frame bolts and mounting points every few months for tightness.
-
Maintain moving components: Periodically lubricate applicable motion components as recommended by the manufacturer.
-
Plan for multiple users: Use a seat slider if multiple people will use the rig.
-
Optimize for VR: For VR setups, enable motion compensation if needed to align headset tracking with platform movement.
- Keep software current: Keep firmware, drivers, and motion software updated for the best compatibility.
Videos
Frequently Asked Questions
Q. What makes the H3 different from the H2 model? Click to expand ▼
A. The H2 provides pitch and roll motion. The H3 adds yaw rotation, creating a more dynamic motion experience for racing, flight, drifting, and aircraft yaw movement.
Q. Can this rig support both racing and flight simulations? Click to expand ▼
A. Yes. The H3 Universal is designed for both racing and flight simulation. Many users configure quick-swap setups to move between steering wheels, pedals, yokes, throttles, HOTAS controls, and flight accessories.
Q. Will it work with PlayStation and Xbox? Click to expand ▼
A. Yes, but console support depends on the specific game and connection setup.
Consoles operate within closed and proprietary platforms. Only select games send motion data from consoles using UDP over the network, such as Gran Turismo 7, Gran Turismo Sport, Project CARS, Project CARS 2, Assetto Corsa, F1, Forza Motorsport 7, and Forza Horizon 4 and 5.
For supported console games, a MagicBox solution may be used. For the most accurate compatibility details, review the current DOF Reality supported games list before ordering.
Q. What seat should I use with the H3 platform? Click to expand ▼
A. Your seat setup depends on personal comfort and driving or flight style. The H3 supports most bottom-mount car or gaming seats, giving you flexibility to choose what feels best.
A bucket-style racing seat is recommended for added stability during higher-intensity motion. A 4-point or 6-point harness can be added for extra security, though it is optional. For best performance, a lightweight seat helps the motion platform respond faster and more precisely.
For convenience and adjustment, a standard bottom-mount car seat with sliders or rails is a practical choice. If you choose a bucket seat, you may need side-to-bottom bracket adapters and slider rails.
Seat Mount Dimensions:
- Depth: 280 mm front to back
- Width options: 345 mm (13.37”), 375 mm (14.49”), or 405 mm (15.94”)
Q. Does it work with VR headsets? Click to expand ▼
A. Yes. The H3 works with major VR systems, including Meta Quest, HTC Vive, Pimax, HP Reverb/G2, and other compatible PC VR headsets. For best results, start with reduced motion intensity and use motion compensation software if needed.
Q. Is it noisy? Click to expand ▼
A. The H3 is designed for quiet operation and typically runs at a low noise level, similar to a quiet computer fan or home electronics. Actual noise can vary depending on motion intensity, flooring, and installed accessories.
Q. How hard is it to assemble? Click to expand ▼
A. The platform arrives partially pre-assembled, and most users can complete setup with basic hand tools. Assembly time depends on your seat, controls, accessories, and overall cockpit layout.
Q. Can it be upgraded later? Click to expand ▼
A. Yes. The H3 is part of a modular platform ecosystem and can support future upgrades and accessory integrations, including additional motion capability, tactile feedback, flight accessories, and cockpit upgrades.
Q. What maintenance is required? Click to expand ▼
A. Routine maintenance is simple. Check bolts and fasteners periodically, keep the platform clean, inspect moving components, and lubricate applicable joints or shafts as recommended by the manufacturer.
Q. How does VR motion cancellation or motion compensation work? Click to expand ▼
A. The DOF Reality motion simulator is compatible with major VR headsets, but combining motion simulation with VR can require extra setup because your head and headset move with the platform.
When the platform moves, the headset may interpret that physical movement as head movement inside the game. In many cases, reducing the motion intensity in your software settings creates a smoother experience.
If additional correction is needed, motion compensation software can be used. Motion compensation typically uses a tracker or controller mounted directly to the platform to remove the platform’s motion from the headset’s view.
Q. What motion compensation software can be used? Click to expand ▼
A. OpenVR Motion Compensation is a commonly used community-supported option for SteamVR-based setups. Some users may also use other compatible motion compensation tools depending on their headset, simulator software, and tracking system.
For base-station VR systems, users often mount a Valve Index Controller, HTC Vive Controller, or Vive Tracker directly to the motion platform. For inside-out tracking systems, users may mount a compatible controller on the platform where the headset cameras can clearly see it.
The tracker should be securely mounted and isolated from vibration where possible.
Q. Are there hardware-based motion compensation methods? Click to expand ▼
A. Some VR users use hardware-based workarounds, such as mounting a sensor or controller directly to the motion platform or limiting certain headset tracking inputs. Results vary by headset, software version, and simulator setup.
For best results, use a stable tracker mounting location, reduce unnecessary vibration, and test gradually with lower motion intensity before increasing motion strength.
